ND Anti-Seize

Overview

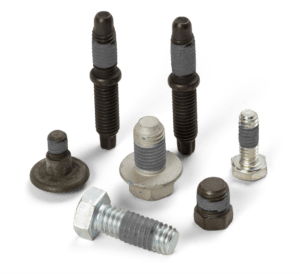

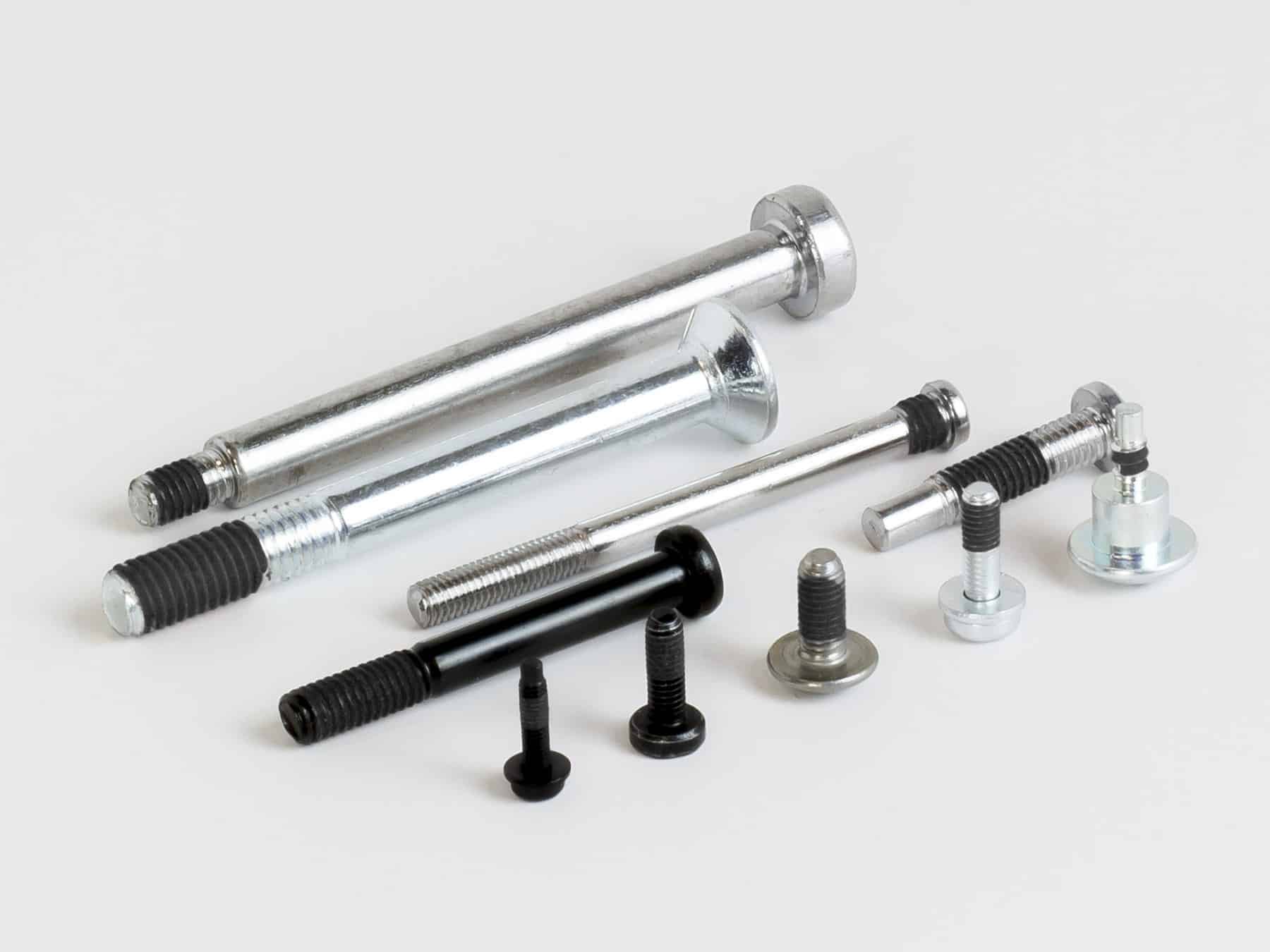

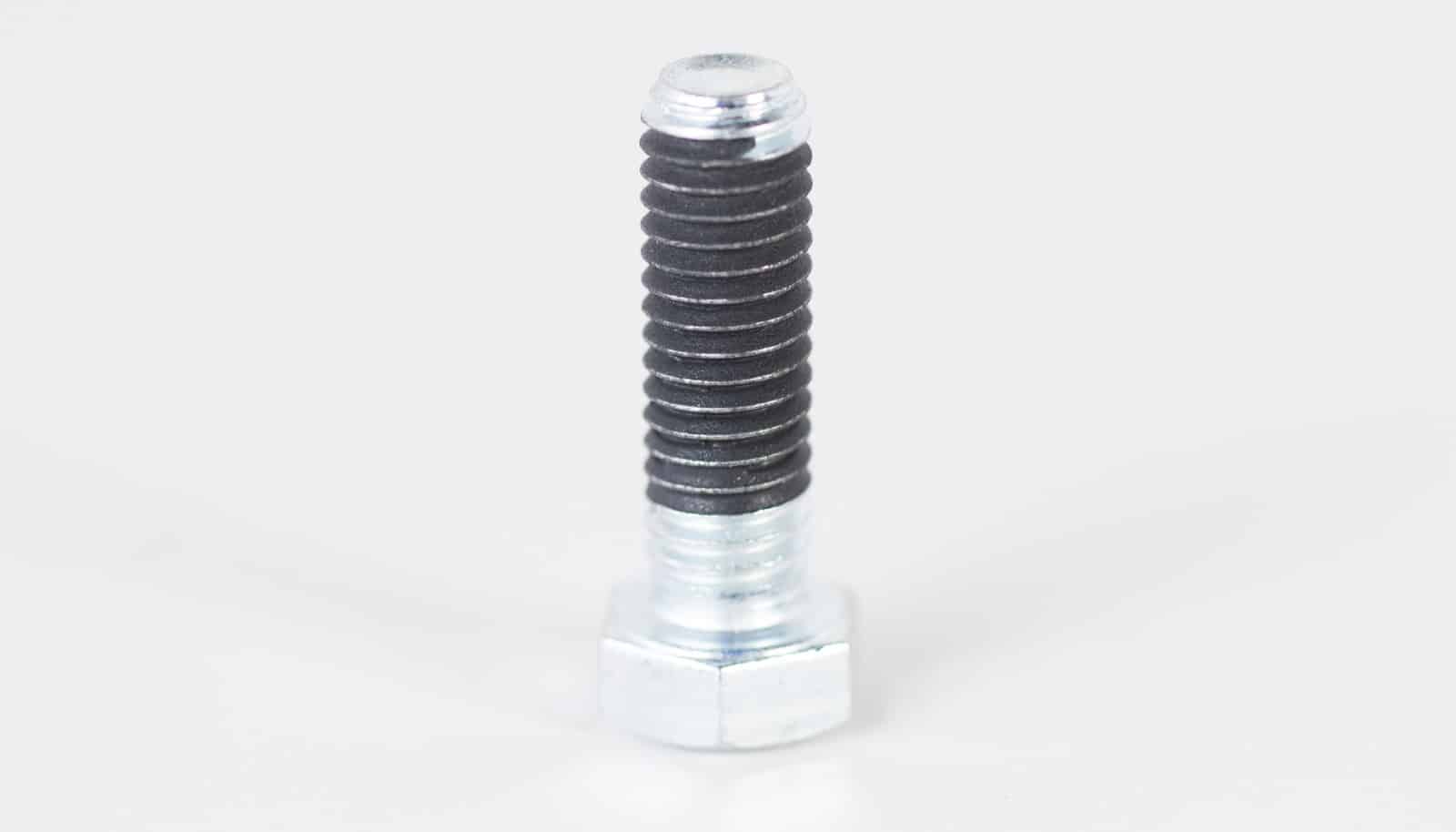

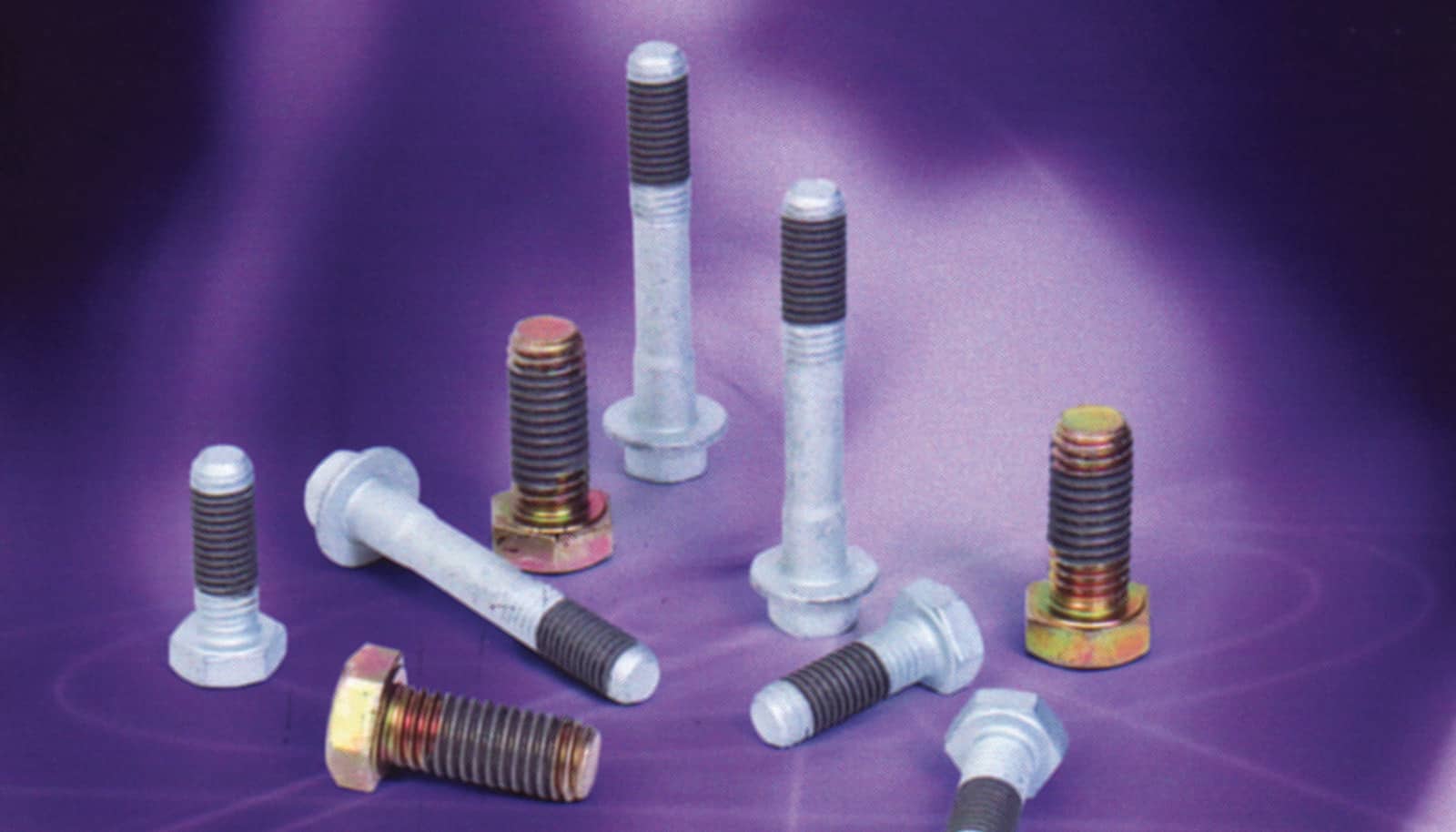

ND Anti-Seize is a pre-applied process in which ND Industries applies custom dry film lubricants to fasteners and assemblies to prevent galling, seizing and corrosion. Pre-Applied bolts achieve a higher torque clamp load when compared to an un-coated bolt receiving the same torque.

How it Works

Customer parts sent to ND Industries undergo our ND Anti-Seize pre-application process whereby dry film lubricants are coated onto fasteners and assemblies in bulk. Our custom formulated materials are dried, then the completed fasteners are packaged and returned to the customer. Parts arrive ready for assembly or for storage until needed. ND Anti-Seize processed parts have a very long shelf life due to the inert nature of the materials used, however re-certification of parts should take place to confirm other external factors have not compromised performance.

Features

Reduce Installation & Removal Torque

Eliminates Galling and Seizing

Provides Consistent Torque Values

High Temperature Resistance

Chemical and Corrosion Resistant

Increases Sealing Ability

Reusable up to 5 times

Allows for high speed installation

Benefits

  • Saves Time: Pre-Applied ND Anti-Seize parts can be automatically fed through standard feeding devices – speeding up your process and improving productivity.
  • Saves Money: ND Anti-Seize processing is less expensive than applying bottled anti-seize at the point of assembly.
  • Quality Control: Pre-Applied parts are coated to specification, insuring consistent performance unlike bottled products.
  • Reduces Fatigue: ND Anti-Seize processing reduces installation and removal torques.
  • Increased Margins: Add value to your fasteners without adding to inventory by supplying customers with self-lubricated fasteners.
  • Easy to use: Works on a wide range of material finishes

Notes

  • Indefinite on part life under ideal storage conditions [+40°F (+4°C) to +90°F (+32°C)], but re-certification must occur once a year.

ND Anti-Seize Competes With

  • Nylok® NyPlate
  • Loctite® Pre-Applied Anti-Seize
  • omniTECHNIK® Precote® 709

Nylok® and Nyplate® are registered trademarks of Nylok LLC, USA. Loctite® is a registered trademark of Henkel Corporation, USA. Omnitechnik® and Precote® are registered trademarks of Omnitechnik, Mikroverkapselungs GMBH LLC, Germany.

Applications

Applications
Steering Columns, Engine Applications, Brakes, Rear-End, Transmissions, Areas of Heat, Military Fasteners

Compatible Fasteners

External Threads:Internal Threads:Rivets:
Banjo Bolts, Hex Bolts, Flange Bolts, Wheel Bolts, Machine Screws, Cap Screws, Wood Screws, Sheet Metal Screws, Self Drilling Screws, Shoulder Bolts, Tube Nuts, Fully Threaded Studs, Double Ended Studs, Singled Ended Studs, Press-In Captive Studs, Carriage Bolts, Lag Bolts, Socket Screws, Set Screws, Eye Bolts, Eye Lags, J-Bolts, U-Bolts, Elevator Bolts, Hangar Bolts, Perforated Base Studs, Through Hole Weld Studs.Flange Nuts, Hex Body Clinch Nuts, Prevailing Torque Nuts, Floating Nuts, Hollow Bolts, Insert Nuts, Lock Nuts, Weld Nuts, Barrel Nuts, Chicago Bolts, Jam Nuts, Wing Nuts, Square Nuts, Self-Locating Projection Weld Nuts (WN/WNS), Spot Weld Nuts, Projection Weld Nuts, Bridge Spot Weld Nuts, Tab Spot Weld Nuts, Square Projection Weld Nuts, Flange Weld Projection Nuts, Stamped Flange Weld Nuts, Spot Weld Cage Nuts.N/A

Don’t see your parts on this list? We process thousands of different types of fasteners and depending on the quantity will gladly look at whether we can accommodate yours as well.

Technical Data

ProductColorBaseK-ValueTemperature Range
Anti-Seize 917NGreyNickel0.151200°F (650°C)
Anti-Seize 957White or BlackWater-based non-toxic formula0.232012°F (1100°C)

Specifications

Particular formulations of ND Anti-Seize meet or exceed the performance requirements of the following specifications and/or standards:

Spec ForSpec NumberND ProcessND Material
General MotorsGM6108MAnti-Seize917N Preapplied Antiseize
General MotorsGMW 16343Anti-Seize917N Pre-Applied Anti-Seize
US MilitaryMIL-A-907EAnti-Seize907A - ALUMINUM
US MilitaryMIL-A-907EAnti-Seize907N - NICKEL
US MilitaryMIL-A-907EAnti-Seize907C - COPPER

Safety, Technical & Process Data Sheets

Process NameMaterialSafety Data Sheet (Applied)Technical Data Sheet (Applied)Process Data Sheet
Anti-Seize917NND Anti-Seize - PDS
Anti-Seize957ND Anti-Seize 957 - TDS (Applied)ND Anti-Seize - PDS
Increase product quality while saving time and money with Pre-Applied adhesives and sealants.
