Specialty Coatings

Overview

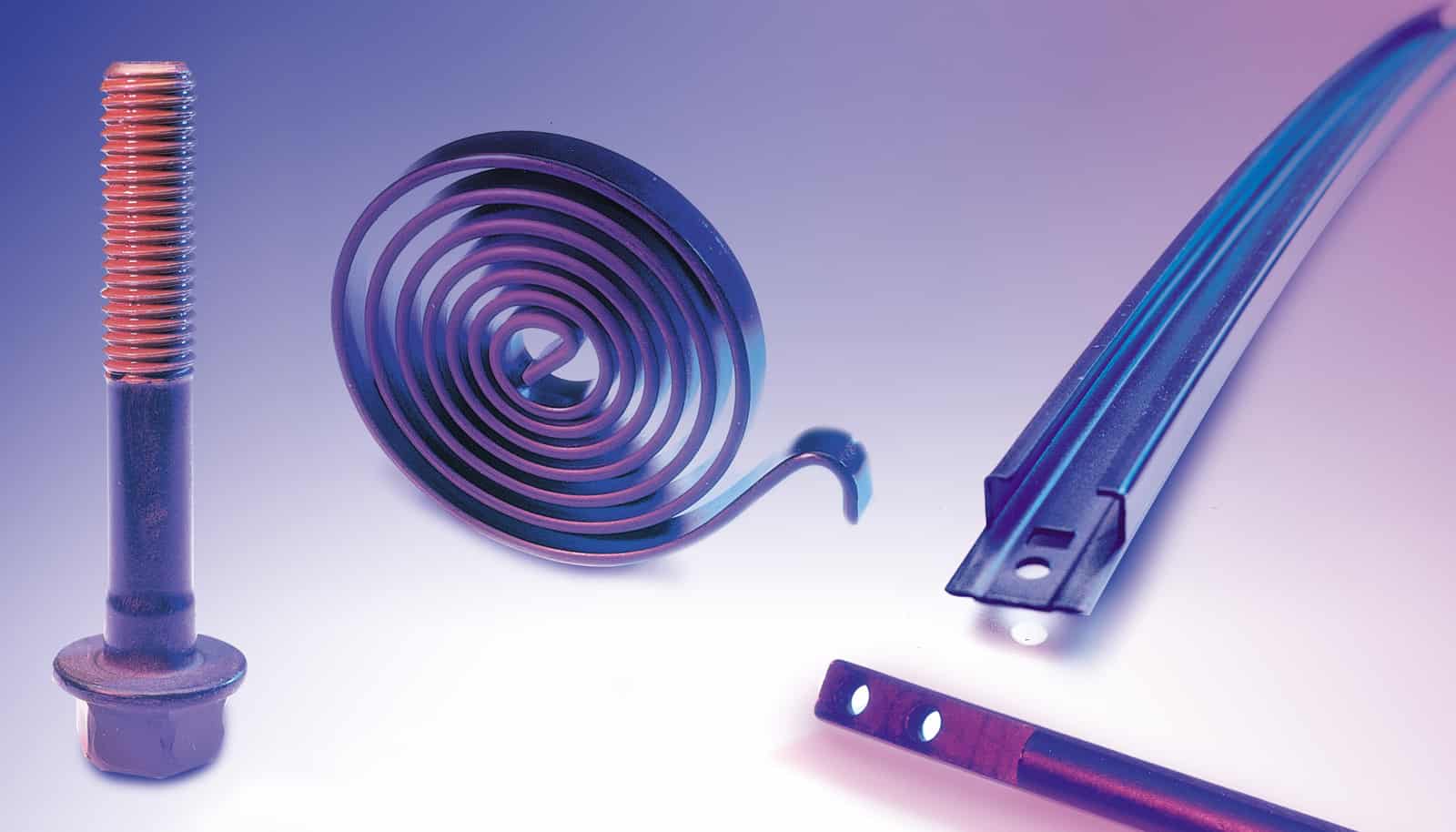

Specialty Coatings are paints, lubricants, and custom, high-performance finishes that are used in a wide variety of applications, including hood springs, window rails, seat tracks, and any number of brackets, clips, dowel pins, and hinges.

How it Works

ND’s complete line of coating products provide one or more of the following: • Lubrication • Temperature Protection • Friction Reduction / Modification • Corrosion Resistance • Torque Tension Modification • Clamp Load And Draw Up Modification • Seize And Gall Prevention • Clogging And Accumulation Prevention • Aesthetic Enhancement And Identification

Features

Application Types

Specialty coatings can be applied via dip-and-spin, dip-drain, flood or spray processing.

Water-based capability

Most suppliers offer only solvent-based coatings, ND offers products in both solvent and water-based mediums.

Formula Bases

Specialty coatings are available in a variety of formula bases, including epoxy, acrylic, urethane and others.

Environmentally Friendly

Water based formulations are available with lower Volatile Organic Compounds.

Lower Shipping Costs

A direct benefit from non-hazardous formulas.

Coating adhesion

Specialty coatings will adhere to a variety of substrates

Benefits

  • Saves Time: Fasteners coated with ND Specialty Coatings can be automatically fed through standard feeding devices.
  • Preserves Fastener Strength: Application and product will not induce hydrogen embrittlement.
  • Quality Control: Pre-Applied parts are coated to specification, insuring consistent performance.
  • Increased Margins: Add value to your fasteners without adding to inventory by supply customers with pre-applied fasteners.

Notes

  • Indefinite on part life under ideal storage conditions [+40°F (+4°C) to +90°F (+32°C)], but re-certification must occur once a year.
  • ND Specialty Coatings do not typically require lead threads.
  • As with all our Pre-Applied products, ND Industries can apply ND Specialty Coatings to your fasteners at any one of our regional service centers, or we can supply you with completed pre-applied fasteners.

Specialty Coatings Competes With

  • Emralon® 305, 330, 333,334, 338, & GP 1904, Moly Dag® 210
  • Xylan® 5251® /840, 1661, 1010
  • Macugard™ #17130 & UV Fluid #19932
  • Formkote® HL
  • Moly cote®

*Emralon and Moly Dag are registered trademarks of Acheson Industries, Ind. Xylan is a registered trademark of Whitford Corporation. Macugard is a trademark of Mac Dermid Inc. Formkote is a registered trademark of E/M Corporation. Moly Cote is a registered trademark of Dow Corning Company.

Applications

Applications
Torque Installation Reducing Aid, Surface Metal Protection, Springs, Clips, Washers, Dowel Pins

Technical Data

IdentifierDescriptionResin SystemCarrierTorque Tension
(K Value)
SC502HV (#006)Torque tension modifying; Paintable; Dry, firm lubricantPolyurethaneWater0.16
SC503 (SC13-06)Non-crosslinked wax emulsion coating with extremely low coefficient of friction. Contains florescent tracer.WaxWater
SC603 (SC10-07)Chemical resistant and corosion resistant coating with extremely low coefficient of frictionPolyurethaneWater0.14
SC604Dry film lubricant for fasteners. Reduces installation torque and helps prevent galling and seizing. AcrylicWater

Specifications

Particular formulations of Specialty Coatings meet or exceed the performance requirements of the following specifications and/or standards:

Spec ForSpec NumberND ProcessND Material
Bombardier (Specialty Bolt)BombardierSpecialty CoatingsSC01-03
Fiat ChryslerPS-7001Specialty CoatingsSC04-01CBK, SC11-03CBK, QD12-01HP
FordESE-M13P6-B1Specialty CoatingsSC04-01C, SC11-03C, QD12-01HP
FordESE-M13P6-B2Specialty CoatingsSC04-01C, SC11-03C, QD12-01HP
FordESF-M13P6-ASpecialty CoatingsSC04-01C, SC11-03C, QD12-01HP
FordWSS-M21P28-A2Specialty CoatingsSC11-03C, SC04-03C, QD12-01HP
FordWSS-M21P33-ASpecialty CoatingsSC10-07BK

Safety, Technical & Product Data Sheets

Process NameMaterialSafety Data Sheet (Applied)Technical Data Sheet (Applied)Product Data Sheet
Specialty CoatingsSC502HV (#006)ND3045Specialty Coatings - PDS
Specialty CoatingsSC503 (SC13-06)ND2232SC503 (SC13-06) - PDS
Specialty CoatingsSC603 (SC10-07)ND3064SC603 (SC10-07) - TDS (Applied)Specialty Coatings - PDS
Specialty CoatingsSC604Specialty Coatings - PDS
